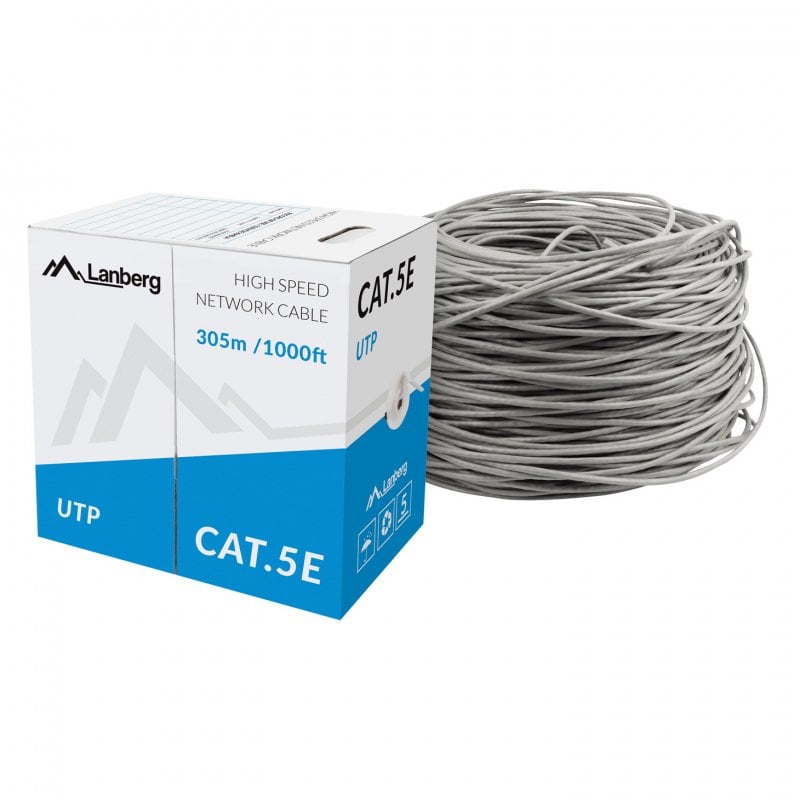

Lanberg RJ45 Cat.5E UTP Solid CCA Network Cable Reel 305m Grey
£23.99
Lanberg Category 5 network cable reel, one of the UTP cabling grades described in the EIA/TIA 568B standard. It is used for CDDI and can transmit data at speeds up to 100 Mbps and frequencies up to 100 MHz. Category 5e UTP LAN cable (unshielded). The wires are made of copper conductor cable (CCA). Length markings printed on every metre of cable. Operation up to 100MHz. Electrical characteristics at 20 degrees. Specifications: Length: 305m AWG 24: (4 * 2 * 0.5 mm) Conductor construction: Solid conductor. Colour: Grey RAL7035 PVC outer insulation: 5.0 mm HDPE conductor insulation: 0.93 mm Conductor resistance (max.): 60 - 90Om / 305m Insulation resistance (min.): 5000mOm km Pair-to-ground capacitance: <330PF / 100m Characteristic impedance: <100Om (+/- 15) Transport and storage temperature: 0 - 60 degrees Operating temperature: -20 - 70 degrees Operating distance: 100-120 m
1-year warranty
